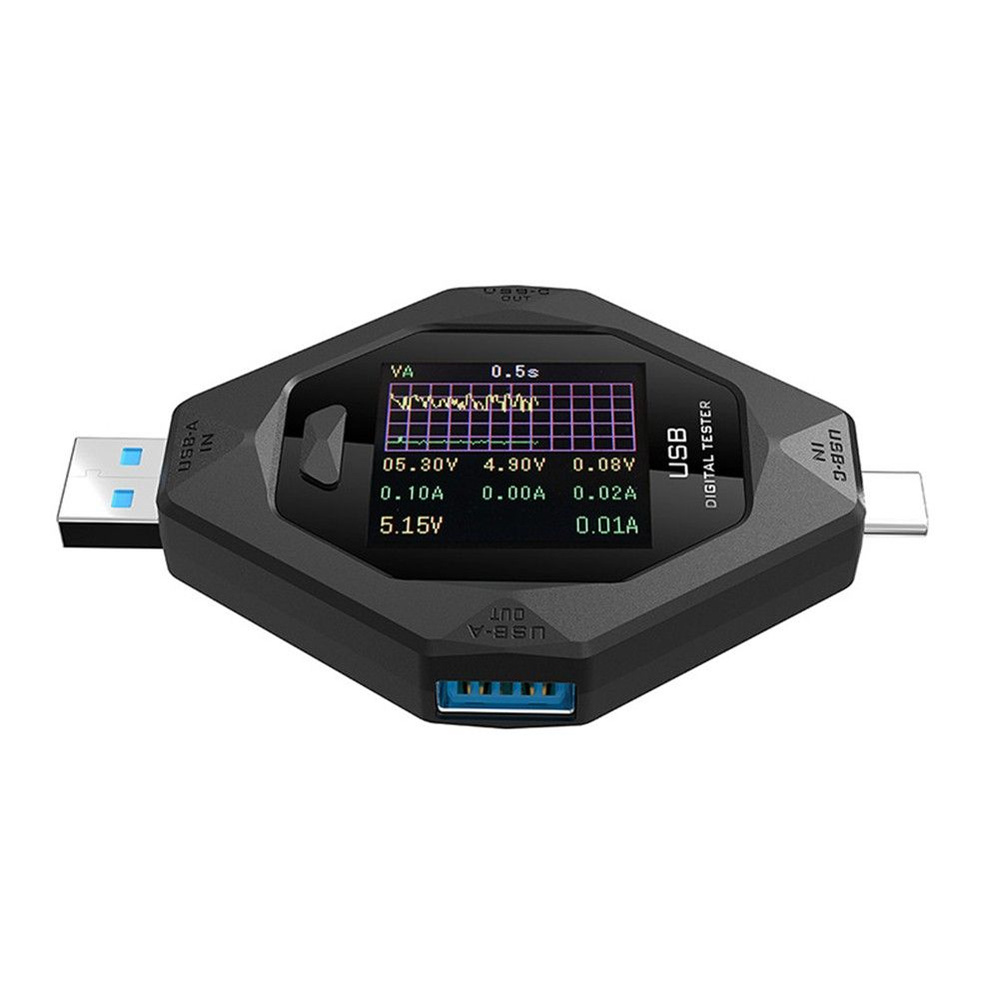

USB voltage tester для multi-function power supply detection analyzer test tool

Features:

1. Upgraded для multi-function USB C fuel gauge: detect the charging status and progress of USB or Type C devices, and can display current, voltage, power, power, capacity, resistance and other functions.

для для для 2. Support for QC3.0, for QC2.0 and for BC1. для для для 2. An essential tool for detecting the charging performance (charging speed and quality) of output car/solar panel chargers and USB charging cables.

3. It can be used to find the maximum current of wireless chargers and test the capacity and power of mobile power supplies.

4. Professional safety protection: equipped with overvoltage protection, overcurrent protection, undervoltage protection,  consumption protection and alarm system.

5. Upgraded  tester, which can perform safety detection and the device from damage to the greatest extent. When the power is suddenly off, it will automatically off the output and sound an alarm, while saving data.

6. Wide range of applications: Applicable to PD protocol fast charging mode actual measurement technology 29W power supply, 5V3A/9V3A/12V2.5A/15V2A.

7. 1.44-inch LCD color screen display: The upgraded version provides IPS high-definition 9-inch LCD main color screen display interface, button switching, and для supports English or Chinese display.

Specifications:

Product Name: Power Meter

Material: Plastic, Metal

Color: Black

Size: 67 x 60 x 12 mm

Voltage measurement range: 3.60V~32.0V

Resolution accuracy: 0.01V

Current measurement range: 0.1~7A (maximum display 8A)

Resolution accuracy: 0.01A

Capacity accumulation range: 0~999999MWH

Resolution accuracy: 0.001Wh

Power measurement range: 0~299.99W

Resolution accuracy: 0.001W

Maximum timing time: для 999 hours 59 minutes 59 seconds

Resolution accuracy: 1 second

Refresh time: >500 milliseconds/time >500 milliseconds/time

Measurement rate: 0.5 times/S

Package Content:

1*Power Meter

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

для для для 2. Please allow slight manual measurement deviation for the data.
